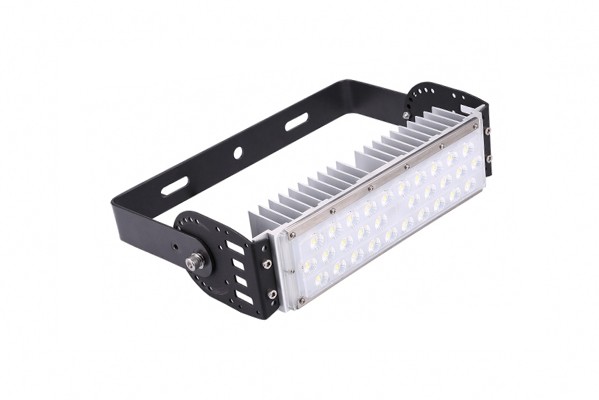

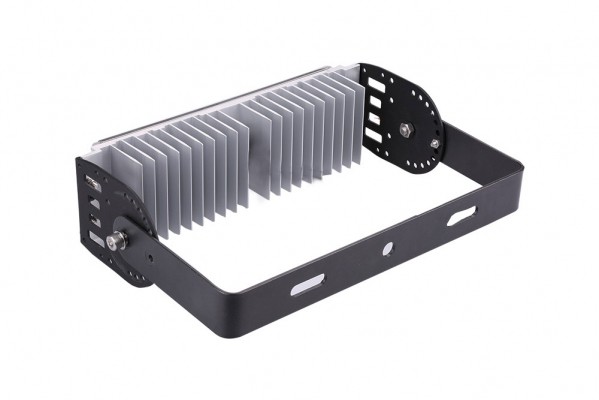

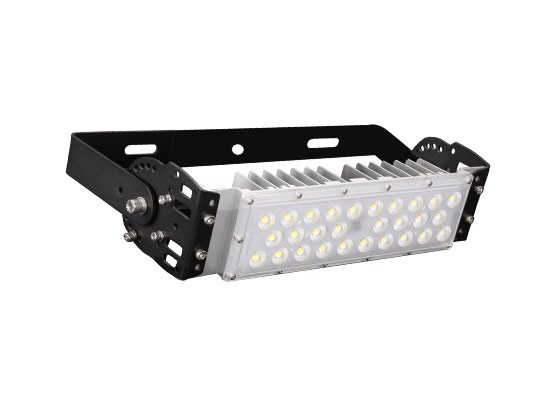

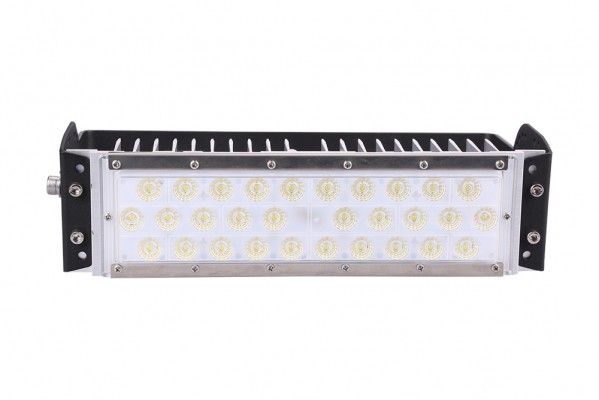

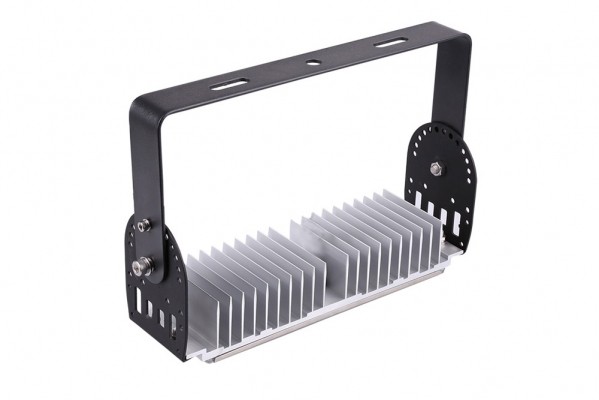

LED Flood Light

LY-HB0501

Main features:

V5 series LED modular flood light come with high luminous efficiency suitable for sport area lighting, high bay lighting, tunnel lighting etc.


✔️150° adjustable bracket

✔️25°,40°,60°,90°,145x100°,Type V

✔️Independent module design

✔️CE ROHS certificate

✔️30W-60W power range

✔️5 Years Warranty


     IK10

    IP66

     years

    >Ra70

    50W

    170lm/w

LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    50W

  • Lumen Efficiency

    170Lm/w(±5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    25°,40°,60°,90°,145x100°,Type V

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 88%

  • CRI

    Ra>70/Ra>80


Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    72,000 hours - L70(9K)

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    305x88x222mm

  • Fixture Weight

    2.1kg

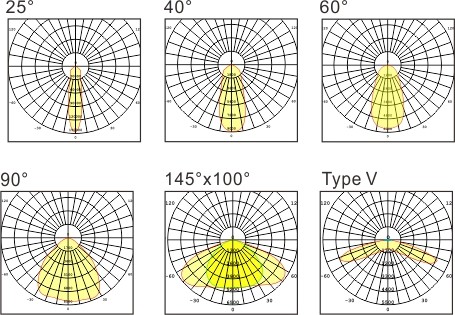

Photometric Specifications

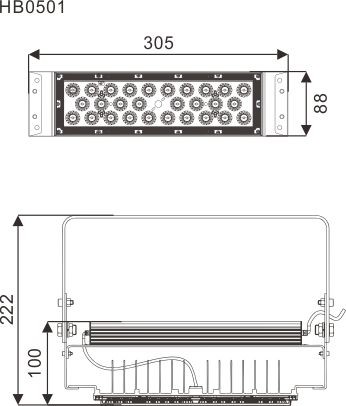

Dimension
