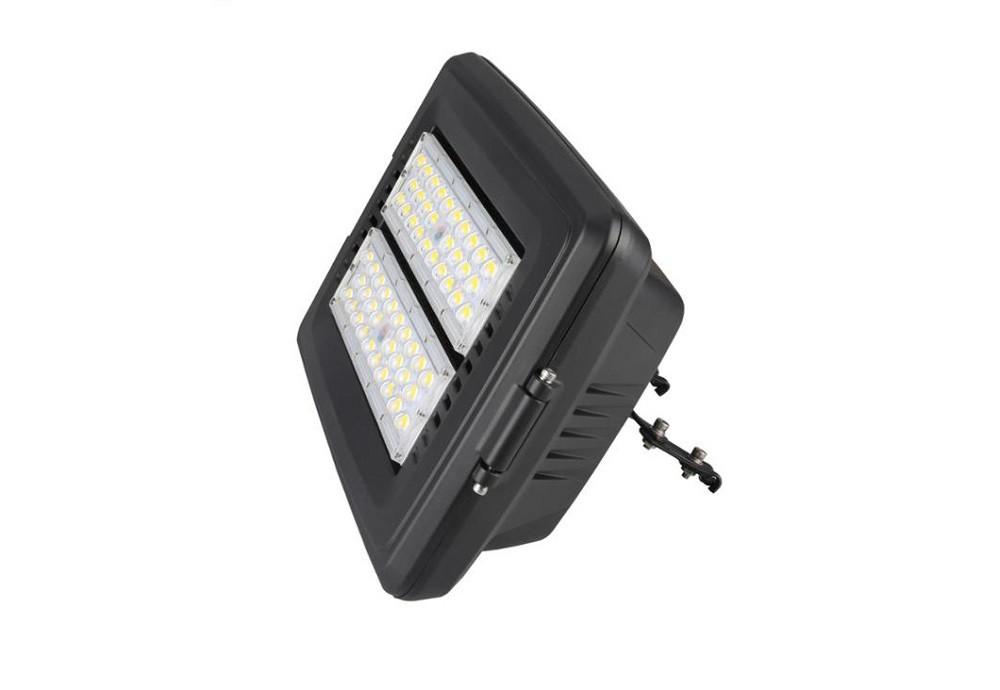

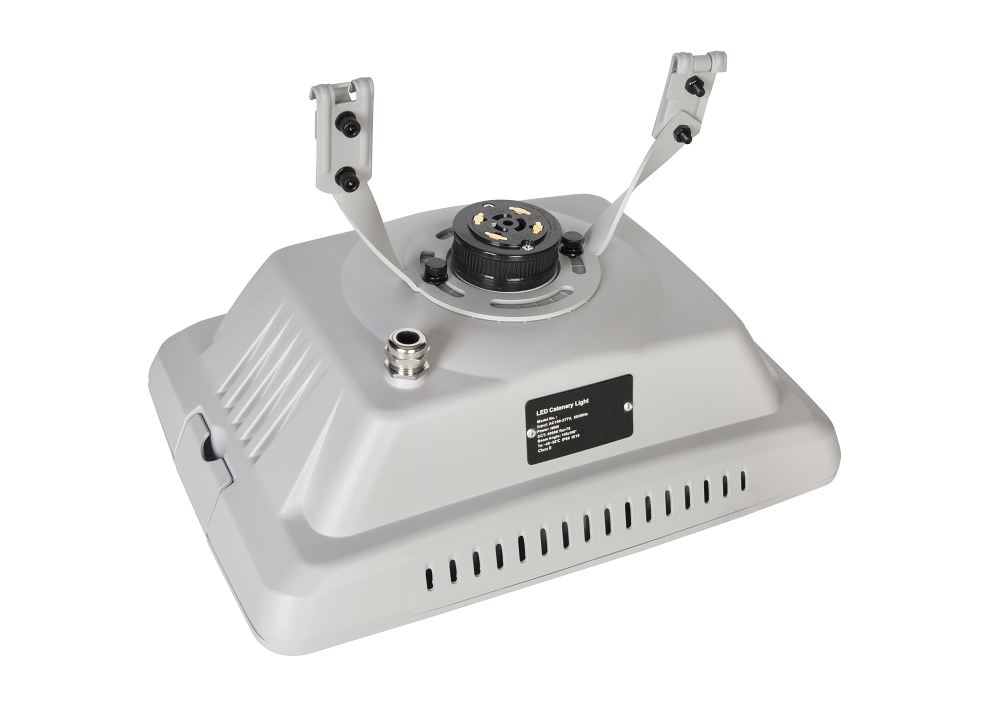

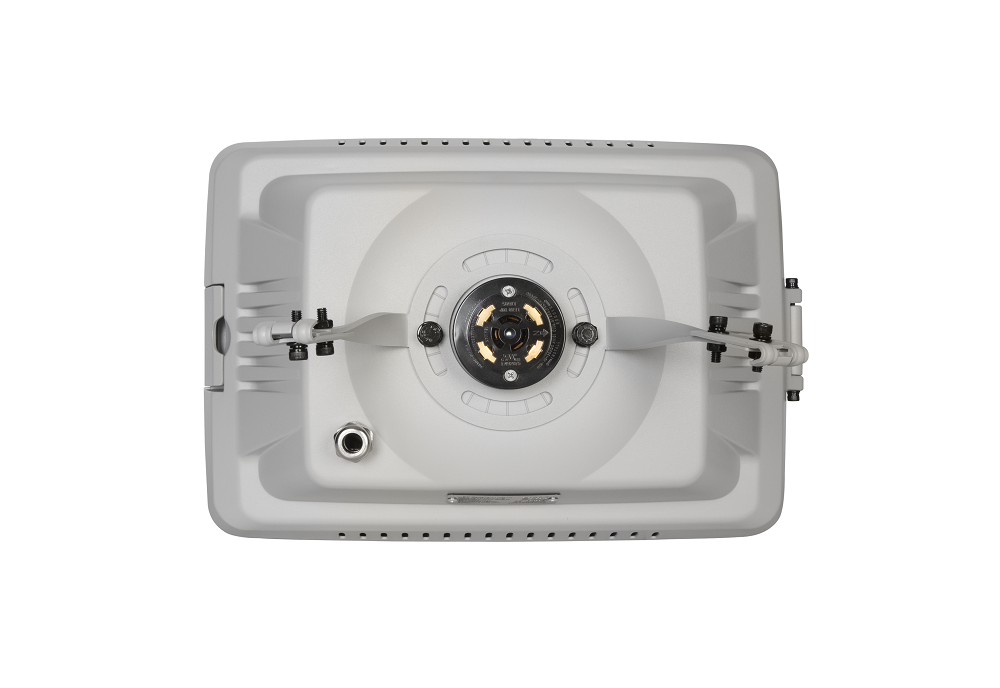

L19 LED catenary street light are unique modern design product for old road lighting. With easy maintenance buckled design. the louver design on fixture improves heating dissipation.
✔️Easy maintenance buckled design
✔️60°,90°,150°,Type I, II, 145x100°
✔️Die-cast aluminium housing
✔️NEMA socket/Zhaga base available
✔️30W-60W power range
✔️5 Years Warranty
IK10 |
IP66 |
years |
Ra>70 |
60W |
180lm/w |
L19 LED catenary street light are unique modern design product for old road lighting.
Been widely used for city road, side road, alley lighting without light pole,combining building with lighting together achieves better sense of design and the city's culture.
✔️Offered in 30W-120W. High light efficacy 170-190lm/W
✔️High pressure die-cast aluminum alloy fixture design.
✔️With excellent housing design reach IP65/IK10 rating.
✔️Buckled deisgn for tool-free maintainance.
✔️Vibration resistant and surge protection 10KV/20KV.
✔️60°,90°,150°,Type I, II, 145x100° are available upon request.
✔️Zhaga/7 PIN NEMA base optional.
✔️Daylight sensor/DALI/LORA IOT controller available.
Electrical Specifications
Nominal Wattage
30W-60W
Lumen Efficiency
170-180Lm/w
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle

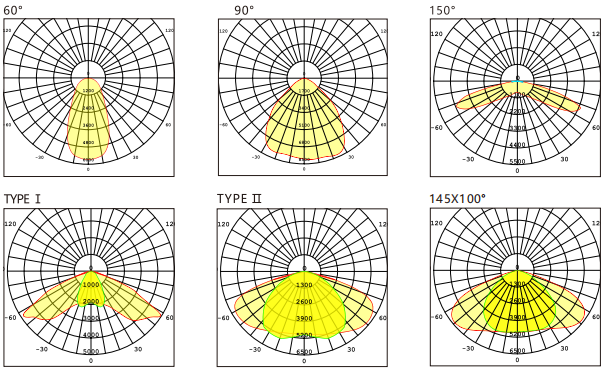

60°,90°,150°,Type I, II, 145x100°
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 85%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
100,500 hours - L80(18K)
Heat Radiator
Aluminum alloy
Lens
PC

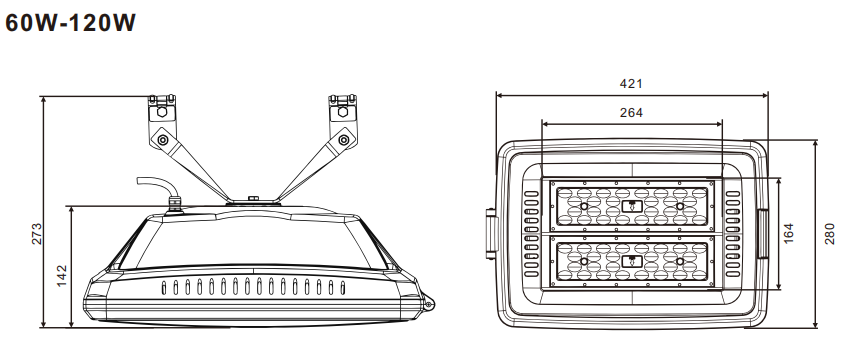

Fixture Dimension
412x280x142mm
Fixture Weight
4.0kg
