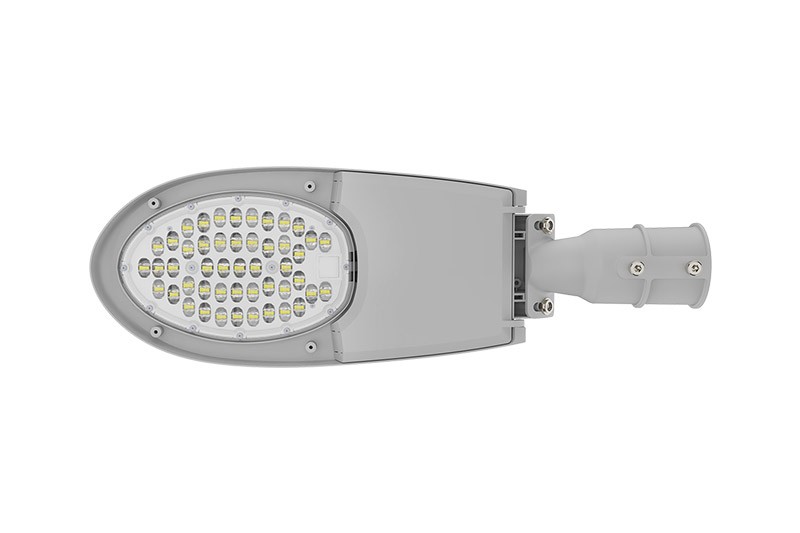

LED Street Light

LY-L8601(PC lens)

Main features:

L86 LED Street Light is a classic oval design. Power ranges covered from 30W-200W. Easy installation and buckle design maintenance is the ideal luminaire replacement for municipalities old lamps.


✔️ PC lens design

✔️ Adjustable spigots ±15°

✔️ Dark Sky CCT 1800K/2200K optional

✔️ Die-cast aluminium housing

✔️ Pole diameter 35/45/48/60/76mm

✔️ 30W-70W power range


     IK09

    IP66

     years

    Ra>70

    30-70W

    180lm/w


LED Lighting Controls

Features

Designed for ledification projects, easy installation and buckle design maintenance is the ideal luminaire replacement for municipalities old lamps. With its high efficiency and low initial cost. The L86 luminaire enables a fast payback and significant savings in terms of energy consumption within a short period of time.

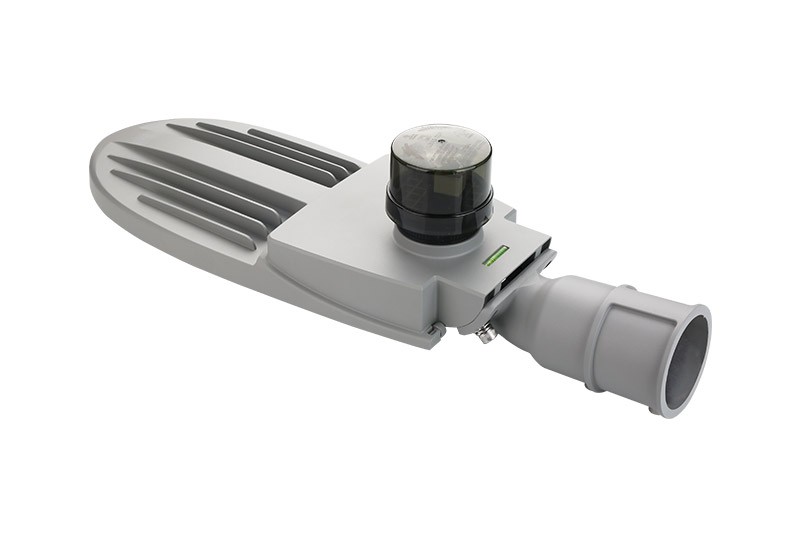

The NEMA or Zhaga socket makes it future-ready, you can pair it with lighting control or sensors and software applications. Available with different optics and lumen packages that can even be tuned further to fit exact project requirements, L86 is a true point-to-point replacement solution for conventional or generation 1 LED luminaire. The high-quality aluminum materials housing is also easy to dismantle and recycle at the end of its lifetime.


Benefits

✔️Offers 180lm/w high efficiency and energy savings

✔️1 to 1 replacement for conventional luminaires or generation 1 LED luminaire.

✔️Made of high-quality materials for longer lifetime and minimized maintenance.

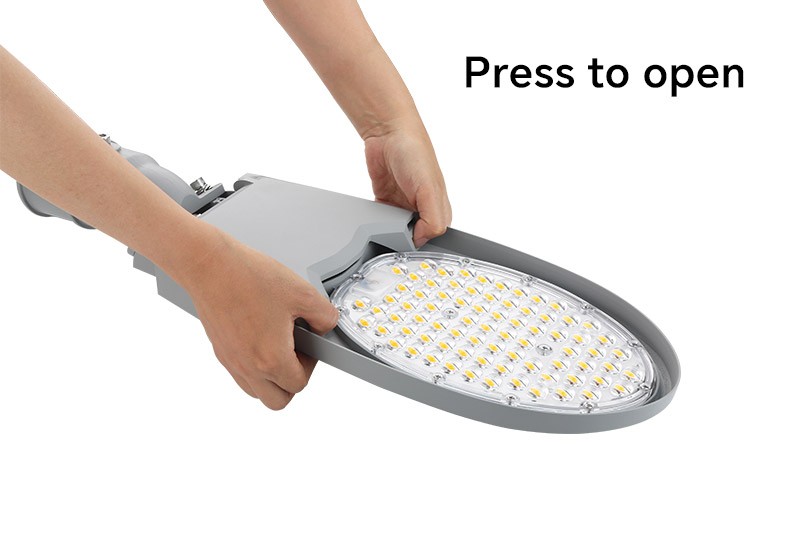

✔️Easy installation and buckle design maintenance.

✔️The NEMA or Zhaga socket makes it future-ready.

✔️TM21 L80 lifetime over 100,000 hours.

✔️Good application coverage thanks to wide range of optics, tunable flux and tillable spigot.

Product parameters

Electrical Specifications

  • Nominal Wattage

    30-70W

  • Lumen Efficiency

    160-180Lm/w

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    Type II

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK09

  • Lumen Maintenance

    101,000 hours L90B10(6K) at 25℃

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC Clear/Amber 2000K

  • Fixture Dimension

    L565xW186xH58mm

  • Pole Diameter

    35/45/48/60/76mm

  • Fixture Weight

    3.2kg


Photometric Specifications

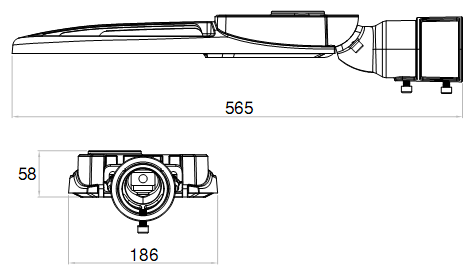

Dimension
