L36 LED Street Light is a classic design in lighting market. Power ranges covered from 30W-350W. Entirely tool-free maintenance design.
✔️ ENEC, CE, ROHS, IK10, IP66 certificate
✔️ Adjustable spigots ±15°
✔️ Dark Sky CCT 1800K/2200K optional
✔️ Die-cast aluminium housing
✔️ Pole diameter 35/45/48/60/76mm
✔️ 80W-150W power range
IK10 |
IP66 |
years |
Ra>70 |
80-150W |
170lm/w |
Increasing numbers of municipalities are having to upgrade large-scale conventional street lighting installations with energy efficient LED technology. But they are having to do this with smaller and
smaller budgets. The new generation of L36 street light is the wonderful design to provide a solution to this challenge, it is the ideal solution for performing point-to-point replacement of conventional

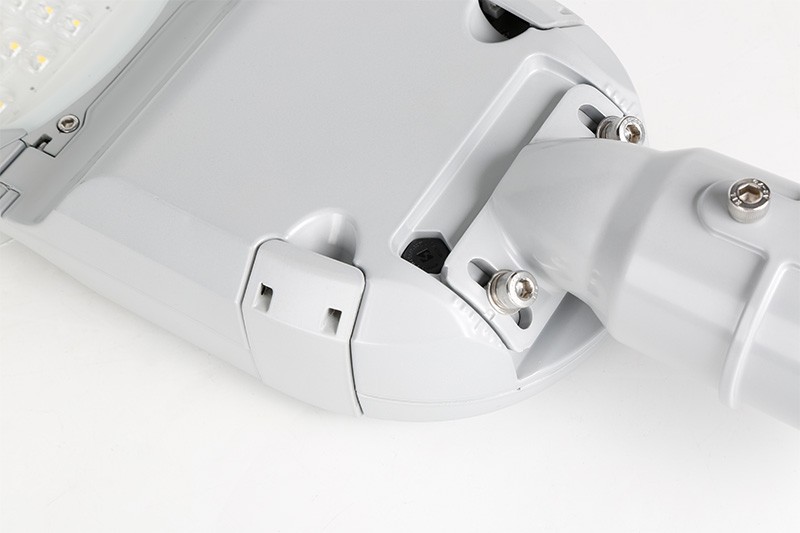

lighting. L36 street light achieves this by offering high efficiency, buckle design, ease of installation and maintenance. The ease of installation and maintenance is enabled by the buckle design.
Moreover, the NEMA/ZHAGA socket makes it future-ready and you can pair this luminaire with lighting control and software applications such as Interact City, DALI, LORAWAN etc.
✔️Economical LED alternative to conventional street lights.
✔️Offers high efficiency and energy savings.
✔️Made of high-quality materials for longer lifetime and minimized maintenance.
✔️Good application coverage thanks to wide range of optics, tunable flux and tillable spigot.
Electrical Specifications
Nominal Wattage
80-150W
Lumen Efficiency
150-170Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz

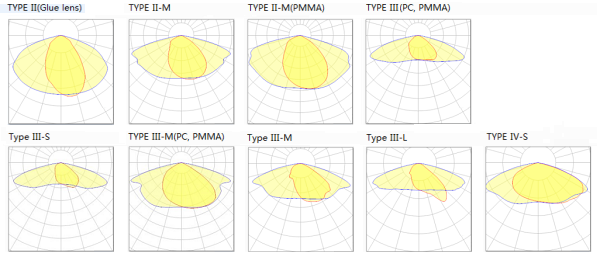

Beam Angle
Type I, II, II-M, III, III-S, III-M, III-L, IV-S
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
101,000 hours L90B10(6K) at 25℃
Heat Radiator
Aluminum alloy
Lens
PC Clear/Amber

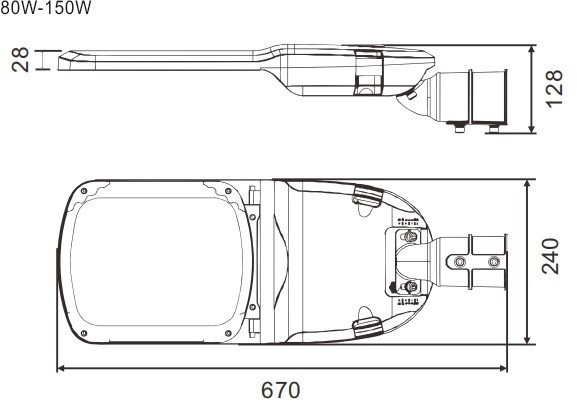

Fixture Dimension
670x240x128mm
Pole Diameter
35/45/48/60/76mm
Fixture Weight
5.8kg
