LED Highbay Light

LY-T20-200

Main features:

T20 linear high bay is the perfect lighting choice for a wide range of application area, smart sensor design and more optional installation type can meet different needs.


✔️Tempered glass cover design

✔️Battery backup optional

✔️Smart sensor available

✔️Standard length 1205mm

✔️150W-200W power range

✔️5 Years Warranty


     IK06

    IP65

     years

    Ra>70

    200W

    130lm/w


LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    200W

  • Lumen Efficiency

    130Lm/w(±5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    120°

  • Optimal Operating Temperature

    40°C to +45°C

  • Driver Efficiency

    > 90%

  • Ra

    >70/>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    50.000 hours - L70(12K)

  • Heat Radiator

    Aluminum alloy

  • Cover

    PC+Tempered glass

  • Fixture Dimension

    1205x210x165mm

  • Fixture Weight

    6.0kg


Photometric Specifications

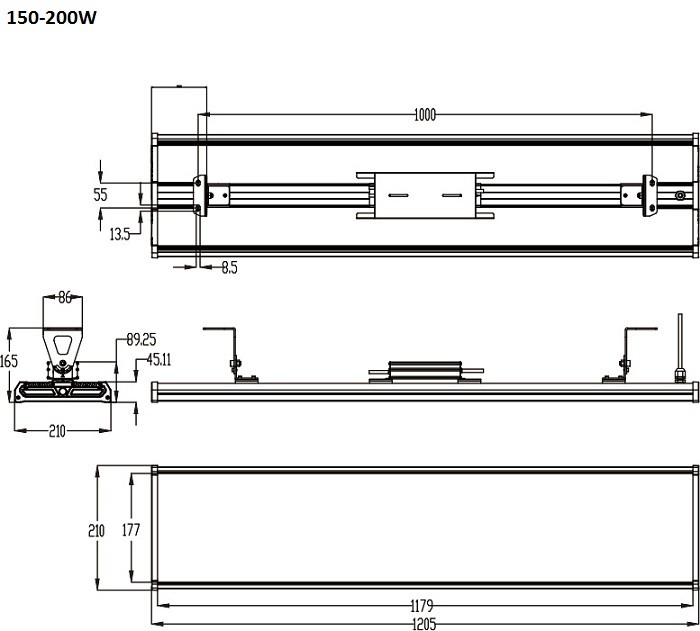

Dimension
