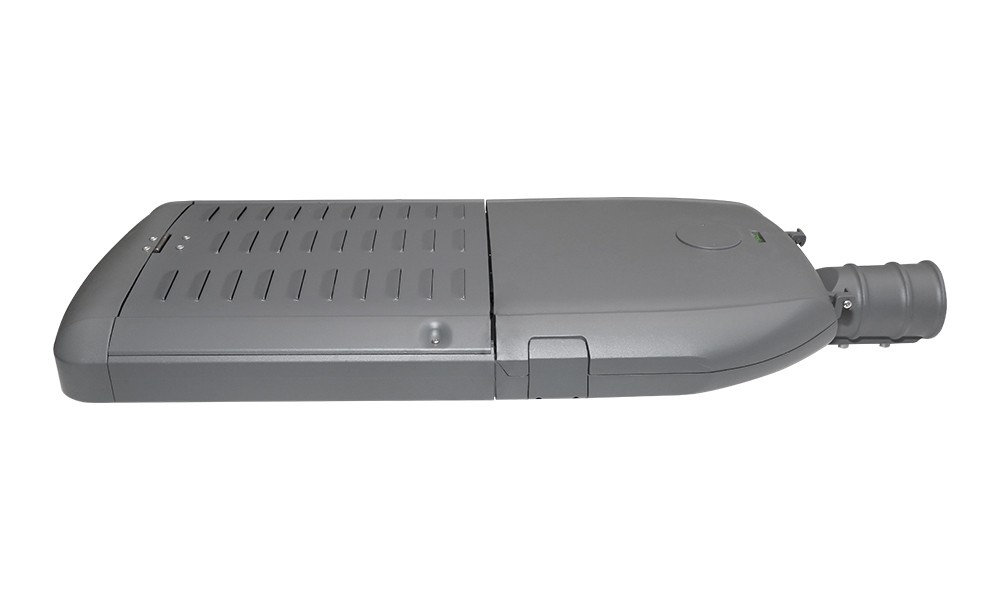

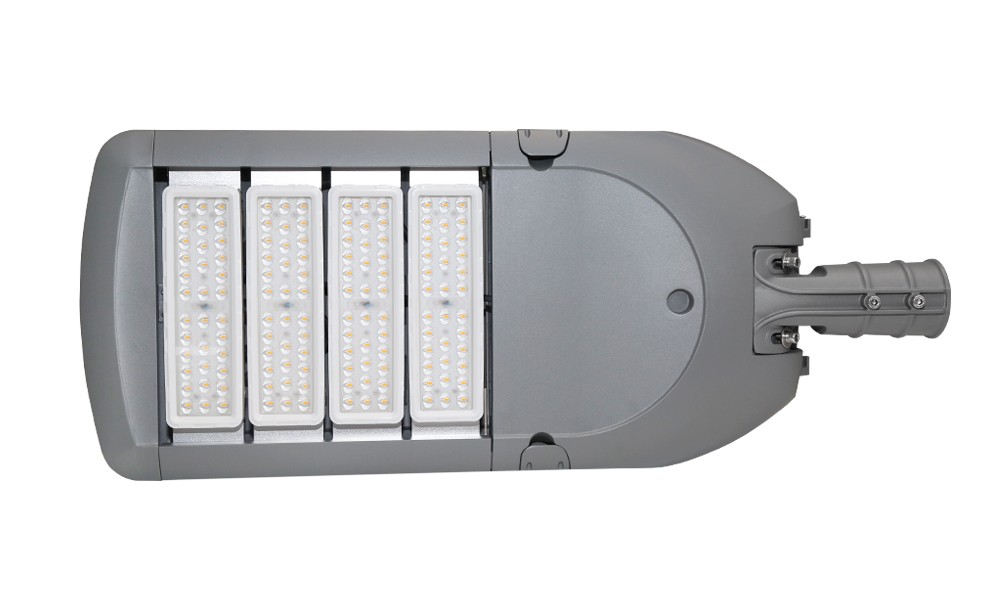

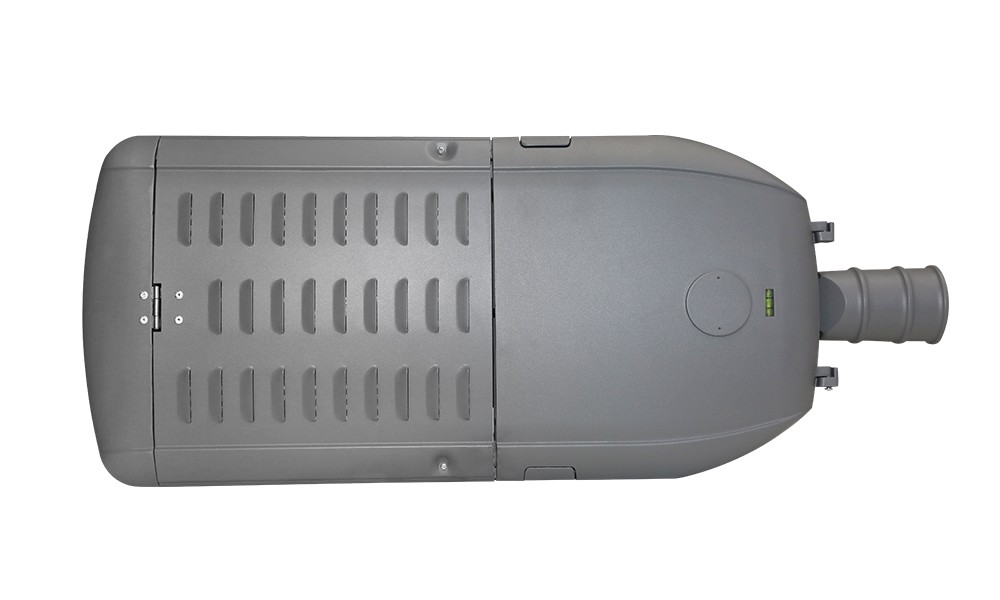

L20 series are LED modular street light has been developed to ensure maximum energy efficiency in combination with modern technologies in LED lighting innovation.
✔️Adjustable spigots
✔️Beam angle: Type III
✔️Buckled design housing
✔️NEMA socket available
✔️180W-200W power range
✔️5 Years Warranty
IK09 |
IP66 |
years |
>Ra70 |
200W |
180lm/w |
Electrical Specifications
Nominal Wattage
200W
Lumen Efficiency
180Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz

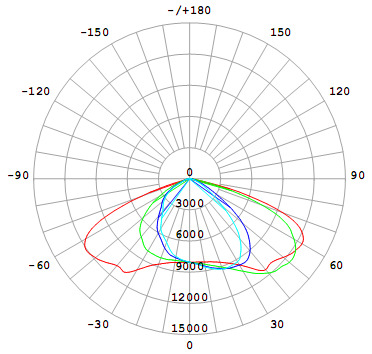

Beam Angle
Type III
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70
Mechanical Specifications
Ratings
IP66 | IK09
Lumen Maintenance
100,000 hours - L70(9K)
Heat Radiator
Aluminum alloy
Lens
PC

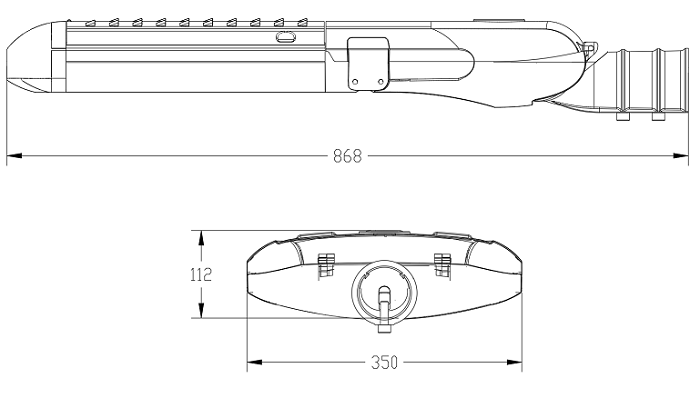

Fixture Dimension
868x350x130mm
Fixture Weight
8.1kg
