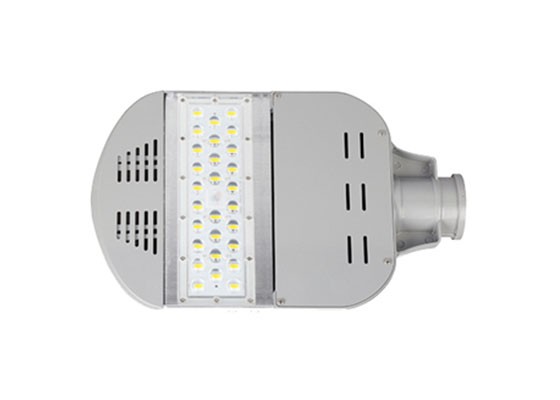

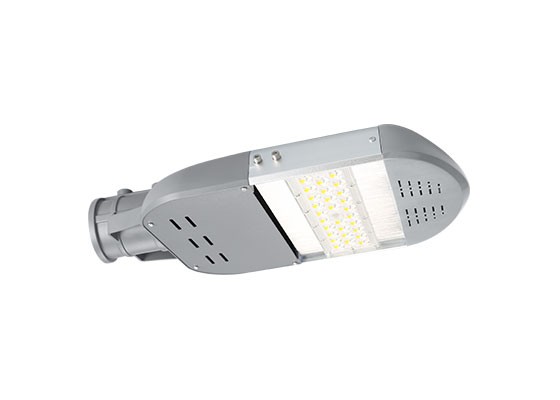

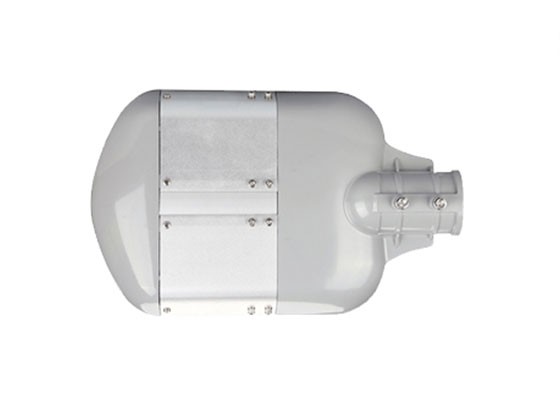

LED Street Light

LY-L1201

Main features:

The L12 is an economical high efficiency street lamp suitable for standard roads with some basic lighting requirements.


✔️Fixed faucet

✔️Type I, II, II-M, III, III-M

✔️Economic design

✔️30W-60W power range

✔️5 years warranty


     IK10

    IP65

     years

    >Ra70

    50W

    170lm/w


LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    50W

  • Lumen Efficiency

    170Lm/w(+-5%)

  • Nominal Voltage

    AC100-277V,50/60Hz

  • Beam Angle

    Type I,II,II-M,III,III-M

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 88%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP65 | IK10

  • Lumen Maintenance

    72.000 hours - L70(9K)

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    440x273x86mm

  • Fixture Weight

    3.1KG

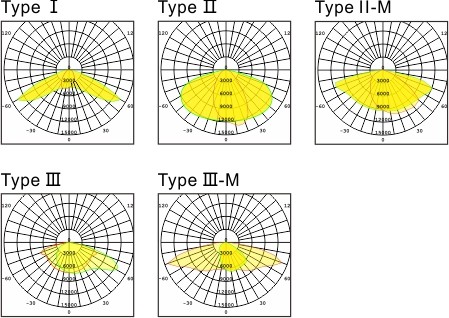

Photometric Specifications

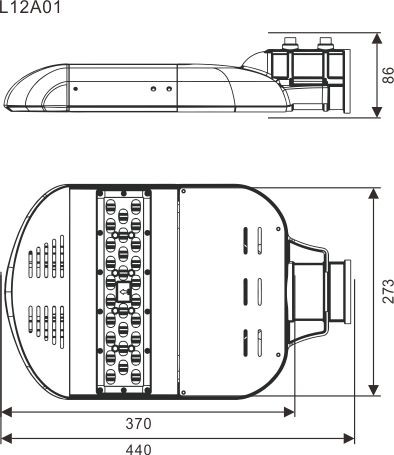

Dimension
