L18 series 60W-350W LED modular street light has been developed to ensure maximum energy efficiency in combination with modern technologies in LED lighting innovation.
✔️Adjustable spigots
✔️150×70°,Type I, II, II-M, III, III-M, IV
✔️Buckled design housing
✔️NEMA socket available
✔️220W-250W power range
✔️5 Years Warranty
IK10 |
IP66 |
years |
>Ra70 |
250W |
185lm/w |
Electrical Specifications
Nominal Wattage
250W
Lumen Efficiency
185Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle

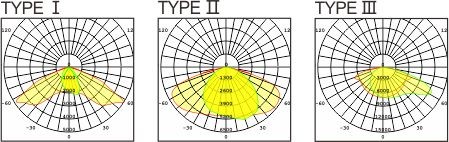

150×70°,Type I, II, II-M, III, III-M, IV
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
100,000 hours - L70(9K)
Heat Radiator
Aluminum alloy
Lens
PC

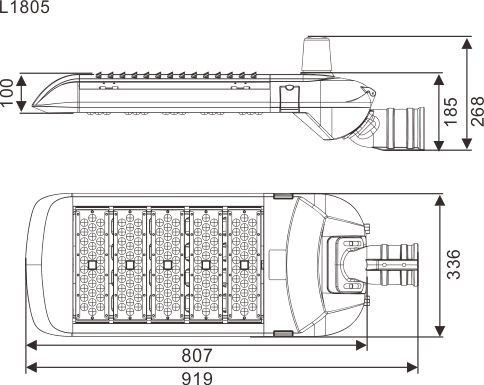

Fixture Dimension
850x350x235mm
Fixture Weight
8.0kg
