L63 Economical design street lighting, is a cost-saving product from 30W to 200W for urban road lighting. System efficacy up to 160lm/w.
✔️ Fixed spigots
✔️ Type II-M
✔️ NEMA socket available
✔️ Die-cast aluminium housing
✔️ 30W-60W power range
✔️ 5 Years Warranty
IK08 |
IP66 |
years |
>Ra70 |
60W |
150lm/w |
L63 StreetLight has been designed with Led transition in mind. Whether to refurbish old HID lanterns, or on a new country street, where you want citizens to feel safe.
✔️Suitable for different applications with Type II-M wide light distribution.
✔️Warm or neutral white color temperatures can accommodate various places.
✔️Small body for easy logistics and install.
✔️Insulation class I/II.
✔️Standard surge protection level of 6KV/10KV.
✔️High efficacy up to 160 lm/W.
Electrical Specifications
Nominal Wattage
30W-60W
Lumen Efficiency
150Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
Type II-M
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 88%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK08
Lumen Maintenance
100.000 hours - L70(12K)
Heat Radiator
Aluminum alloy
Lens
PC

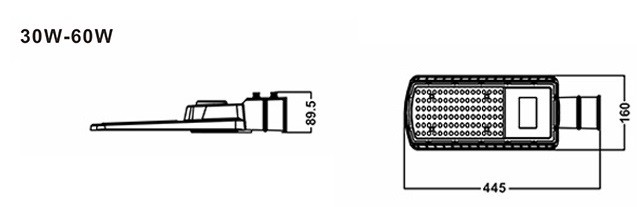

Fixture Dimension
445x170x89.5mm
Fixture Weight
1.73kg
