L68 LED modular street light are most updated & innovating product with easy maintenance buckle design. the louver design on fixture improves heating dissipation.
✔️Adjustable spigots
✔️150×70°,Type I, II, II-M, III, III-M, IV
✔️Die-cast aluminium housing
✔️NEMA socket available
✔️40W-60W power range
✔️5 Years Warranty
IK10 |
IP66 |
years |
Ra>70 |
40-60W |
180lm/w |
L68 LED modular street light are most updated & innovating product with easy maintenance buckle design. The louver design on fixture improves heating dissipation. Wide use in roads, highways, viaducts, city streets, overpasses, sidewalks, and outdoor lighting places.
✔️Offered in 50W-300W, High light efficacy 170-200lm/W

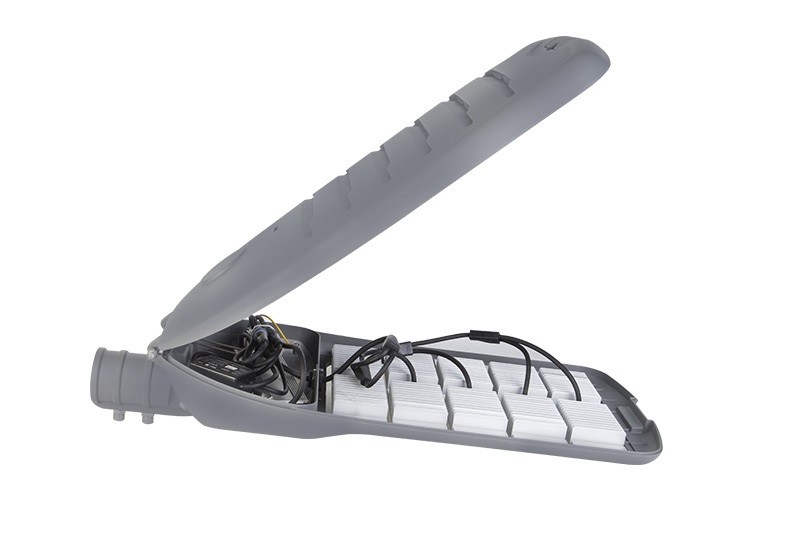

✔️Easy maintenance buckle design street light housing.
✔️Optical UV resistant PC lens with 96% light transmittance.

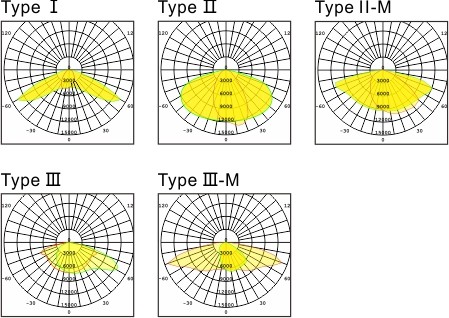

✔️Light Distribution: 150×70°,Type I, II, II-M, III, III-M, IV.
✔️Lamp protection: IP66/IP68 waterproof.
✔️Double surge protection: Driver & extra 10KV/20KV SPD.
✔️Easy assemable SKD design, module+driver+housing kits.
Electrical Specifications
Nominal Wattage
50W
Lumen Efficiency
180Lm/w(±5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
150×70°,Type I, II, II-M, III, III-M, IV
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 87%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
100,500 hours - L80(18K)
Heat Radiator
Aluminum alloy
Lens
PC

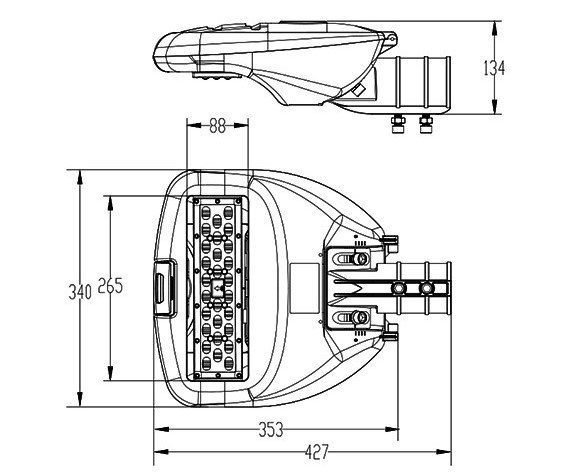

Fixture Dimension
427x340x134mm
Fixture Weight
5.8kg
