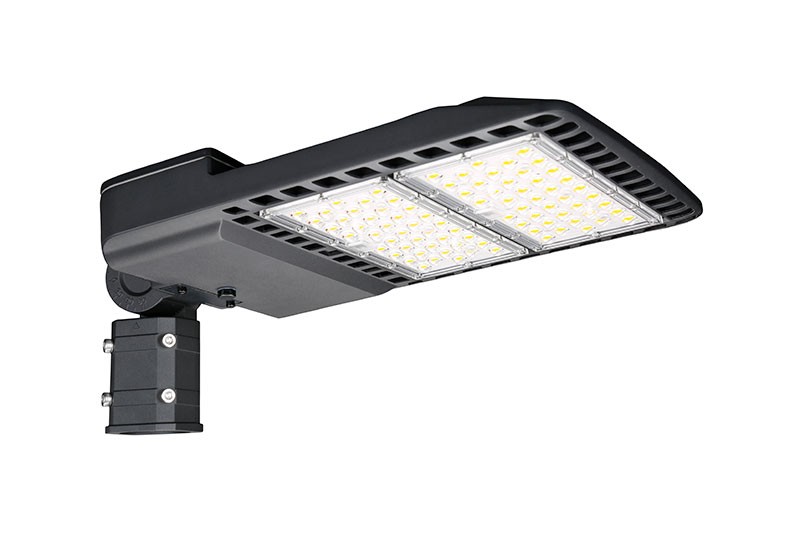

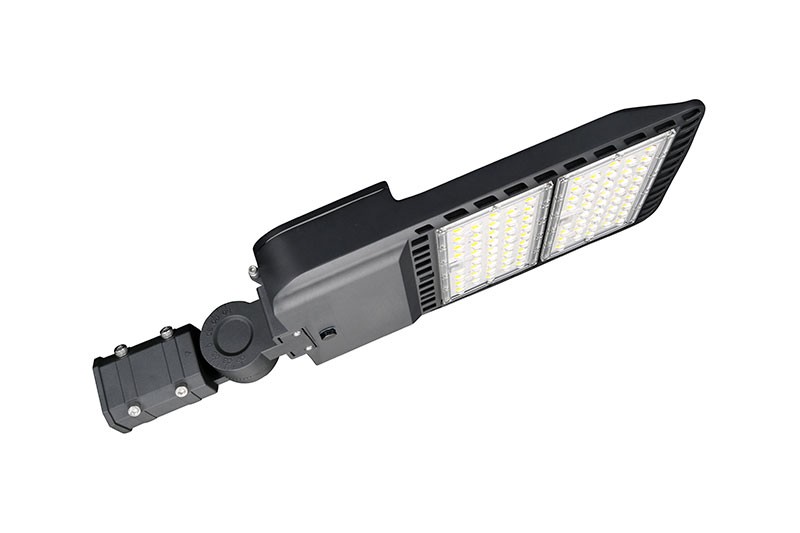

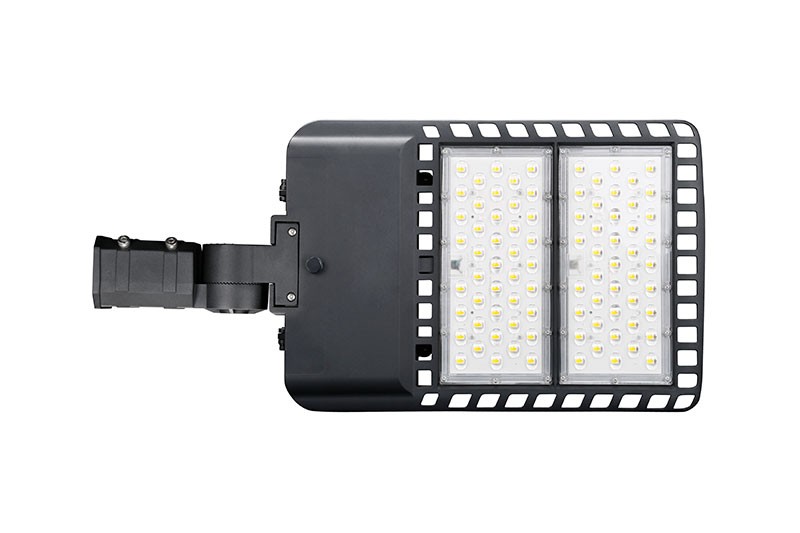

High pressure die-cast aluminium alloy housing LED shoebox light suitable for billboard advertising, road lighting and area lighting.

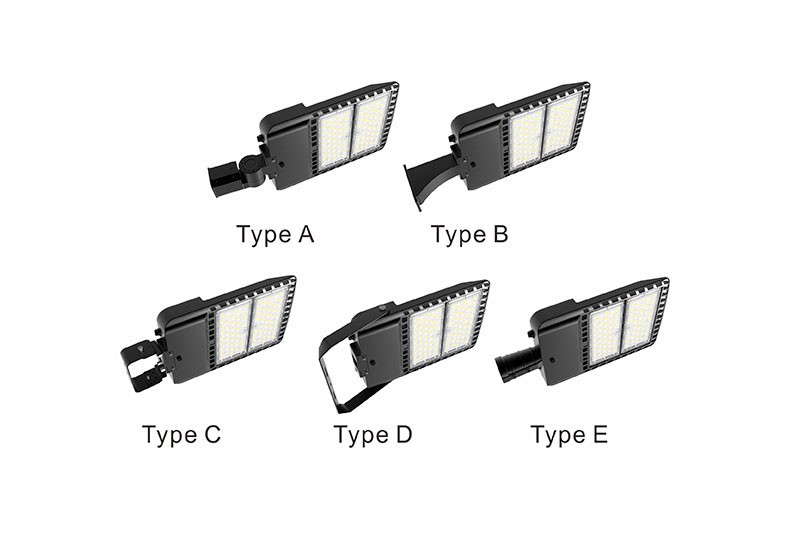

✔️ 5 spigots optional
✔️ 120x50°,145x100°,150x70°,Type II-M,III,IV,V
✔️ Black/Grey housing color
✔️ NEMA socket available
✔️ 120W-200W power range
✔️ 5 Years Warranty
IK10 |
IP66 |
years |
Ra>70 |
120-200W |
140-170lm/w |
Electrical Specifications
Nominal Wattage
120W-200W
Lumen Efficiency
140-170Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
120x50°,145x100°,150x70°,Type II-M,III,IV,V
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
101,000 hours L90B10(6K) at 25℃
Heat Radiator
Aluminum alloy
Lens
PC
Fixture Dimension
651x312x93mm
Fixture Weight
5.6kg
