V20 LED flood light is high purity extruded aluminum design, it is a very economical and practical lamp with various of beam angle for different lighting application.
✔️180° adjustable bracket
✔️10°,15°,30°,60°,90°,30X70°,60x90°,40X130°
✔️Integrated module design
✔️New cost effective design
✔️100W per module
✔️5 Years Warranty
IK10 |
IP66 |
years |
Ra>70 |
320-400W |
150lm/w |
Electrical Specifications
Nominal Wattage
400W
Lumen Efficiency
150Lm/w(±5%)
Nominal Voltage
AC 100-277V, 50/60Hz

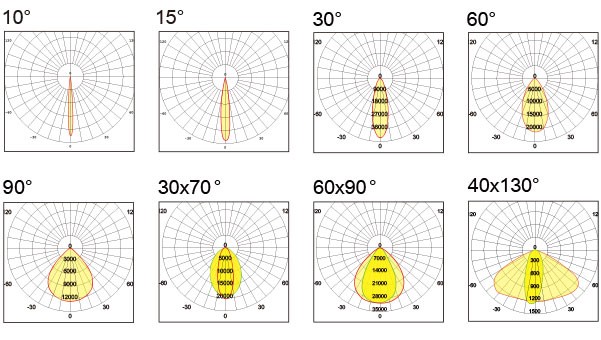

Beam Angle
10°,15°,30°,60°,90°,30X70°,60x90°,40X130°
Optimal Operating Temperature
40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
72,000 hours - L70(9K)
Heat Radiator
Aluminum 6063-T5
Lens
PC

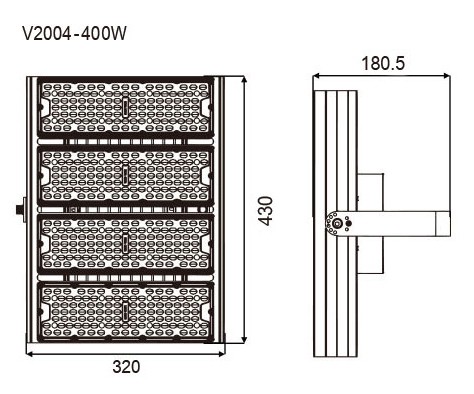

Fixture Dimension
320x430x180.5mm
Fixture Weight
8.0kg
