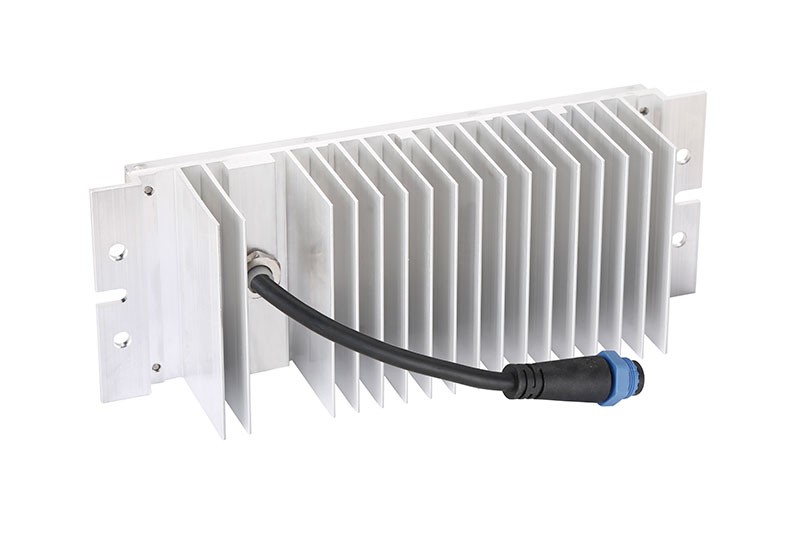

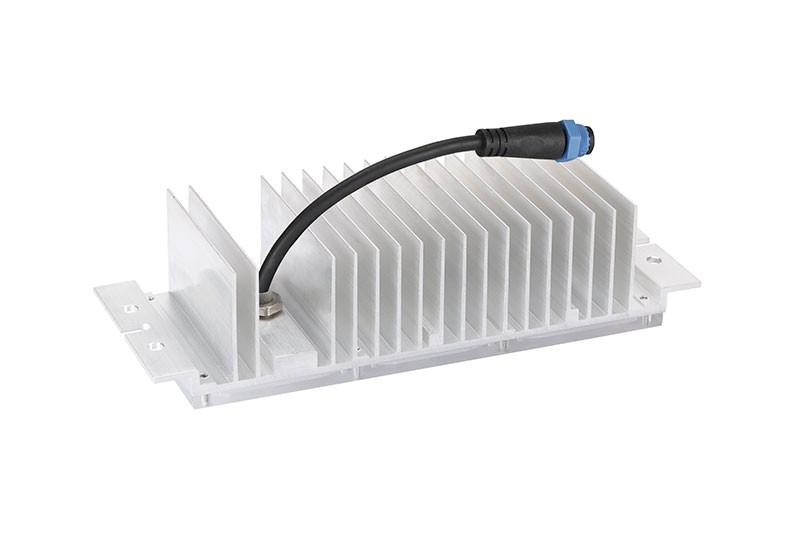

High quality aluminium heat sink with 5050 LED, various beam angles suitable for billboard advertising, road lighting, sport field and area lighting.
✔️ High efficiency 5050 LED
✔️ LED module for street light, flood light, high bay light
✔️ Sliver heat sink color
✔️ M15 connector
✔️ 12-40W power range
✔️ Zhaga standard LED module
IK10 |
IP66 |
years |
>Ra70 |
12-40W |
180lm/w |
Electrical Specifications
Nominal Wattage
12W-40W LED module street light, flood light
Lumen Efficiency
150-180Lm/w
Nominal Voltage
DC46V

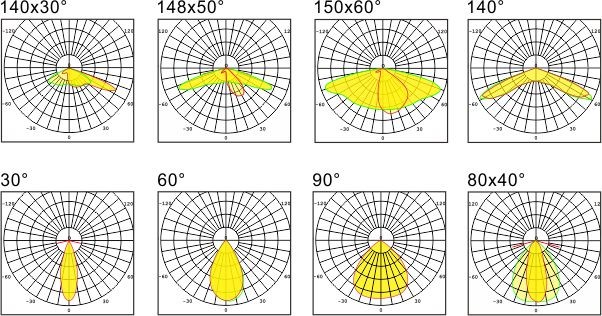

Beam Angle
140x30/148x50/150x60/80x40/140/30/60/90°
LED Type
SMD 5050
CCT
3000K-6000K
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66
Lumen Maintenance
100,000 hours - L70
Heat Radiator
Aluminum alloy
Lens
PC

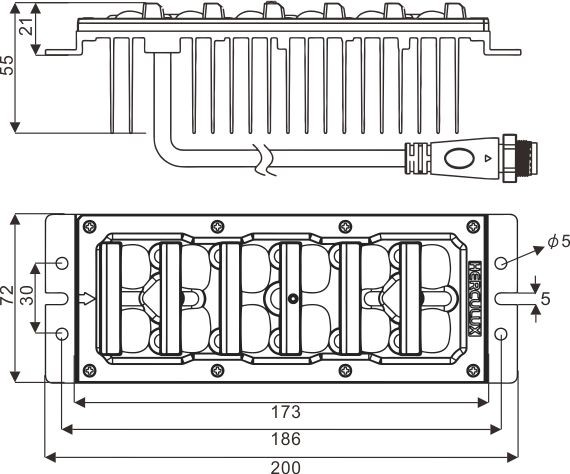

Fixture Dimension
200x72x55mm
N.W.
0.43KG
Certificates
CE,Rohs,LM-80
