High quality aluminium heat sink with 5050 LED, various beam angles suitable for billboard advertising, road lighting, sport field lighting, workshop lighting, tunnel lighting etc.
✔️Use high efficiency 5050 LED 250lm/w
✔️150x70°, Type II, II-M, III-M, 60°, 90°, 140x65°
✔️Sliver heat sink color
✔️M15 connector
✔️30-60W power range
✔️Module efficacy up to 220lm/w
IK10 |
IP66 |
years |
>Ra70 |
30-60W |
220lm/w |

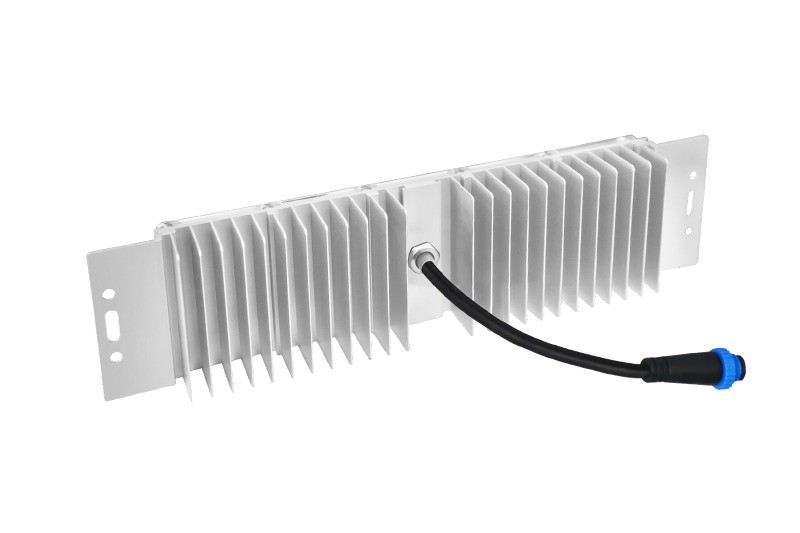

M18C-5050 LED Module with M15 connector is an integrated module solution with IP66 protection, excellent optical and heat management that offers high energy efficacy (190-220LM/W) and high quality of light. 5050 LED module is designed to enable optimum LED lighting in outdoor street, road, sport area, warehouse, workshop applications. Various using for different kind of LED light, with long lifetime and robustness under extreme temperature conditions. Asy to design-in with practical optical solutions for Road lighting, sport field lighting, workshop lighting, tunnel lighting etc.
✔️Easy to install and maintain - modular solution
✔️IP66 integrated heat sink and optics
✔️High energy efficacy, 190-220 lm/W
✔️Wide Color temperature: 1800K-6500K

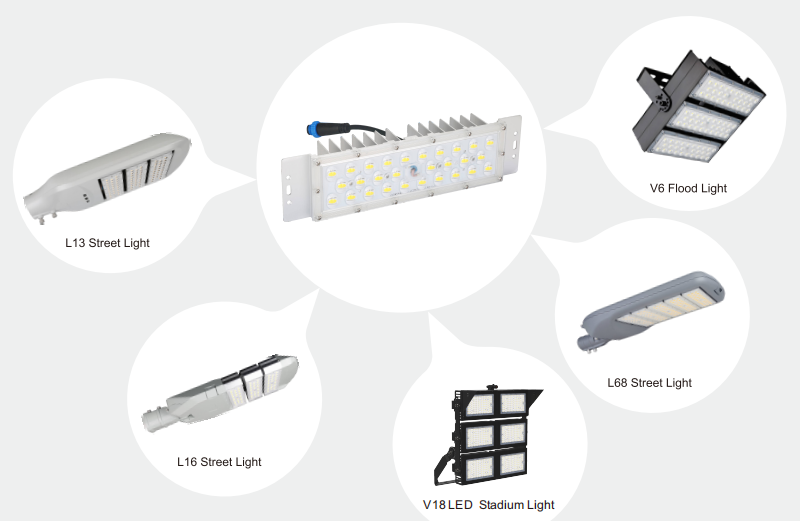

✔️Dedicated light distributions for Outdoor (road/sport field/workshop/tunnel)
✔️CRI 70/80/90 optional
✔️100,000 hours LM80(TM21@L70)
✔️5 years system warranty
Electrical Specifications
Nominal Wattage
30W-60W LED module street light, flood light
Lumen Efficiency
190-220Lm/w(+-5%)
Nominal Voltage
DC45V/DC56V
Beam Angle

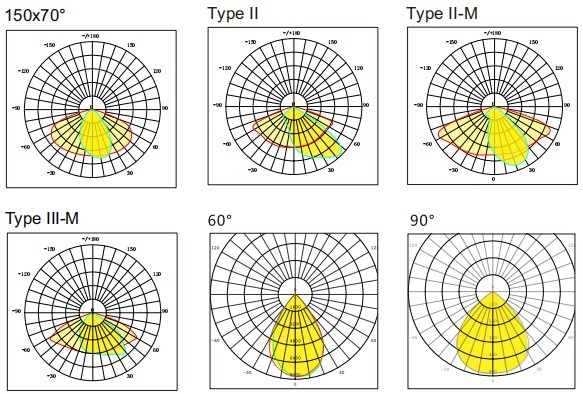

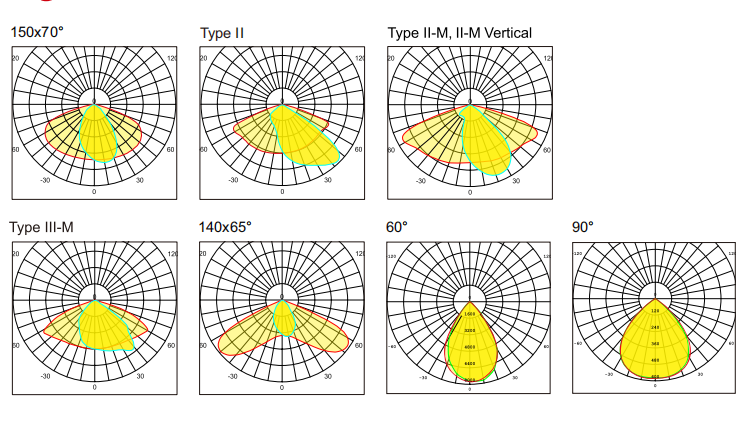

150x70°, Type II, II-M, III-M, 60°, 90°, 140x65°
LED Type
SMD 5050 32PCS
CCT
3000K-6000K
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66
Lumen Maintenance
100,000 hours - L70
Heat Radiator
Aluminum alloy
Lens
PC

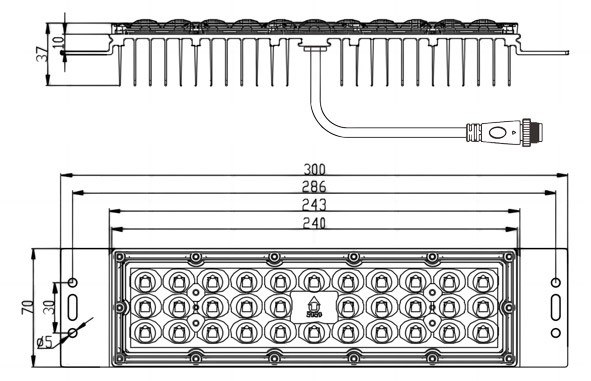

Fixture Dimension
300x70x37mm
N.W.
0.45KG
Certificates
CE, ROHS, LM-80
