High quality aluminium heat sink with 5050 LED, various beam angles suitable
for billboard advertising, sport field and workshop lighting.
✔️ High efficiency 5050 LED
✔️ 25°,40°,60°,90°,150°
✔️ Sliver heat sink color
✔️ M15 connector
✔️ 30W-60W power range
✔️ Efficacy up to 200lm/w
IK10 |
IP66 |
years |
>Ra70 |
30-60W |
200lm/w |
Electrical Specifications
Nominal Wattage
30W-60W LED module highbay light, flood light
Lumen Efficiency
180-200Lm/w(+-5%)
Nominal Voltage
DC46V

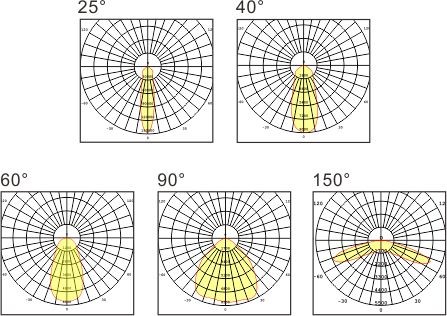

Beam Angle
25°,40°,60°,90°,150°
LED Type
SMD 5050
CCT
3000K-6000K
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66
Lumen Maintenance
100,000 hours - L70

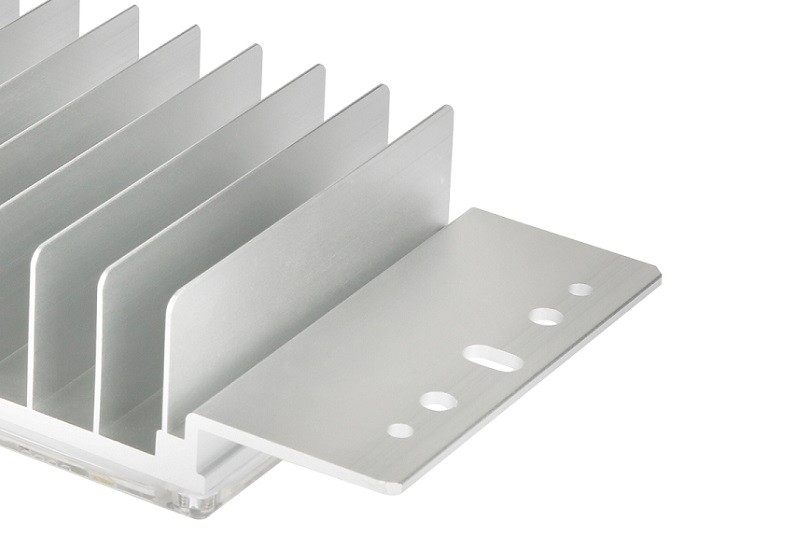

Heat Radiator
Aluminum alloy
Lens
PC

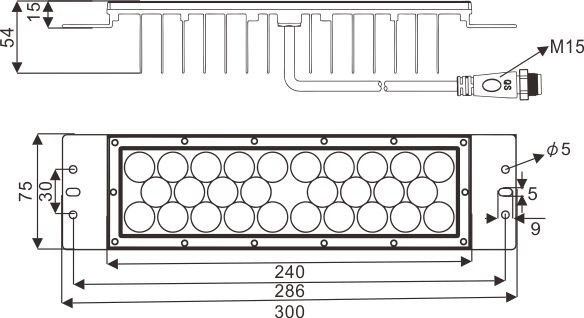

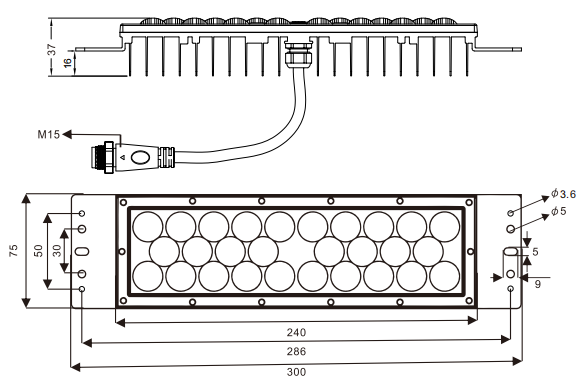

Fixture Dimension
300x75x54mm
N.W.
0.52KG
Certificates
CE,Rohs,LM-80
