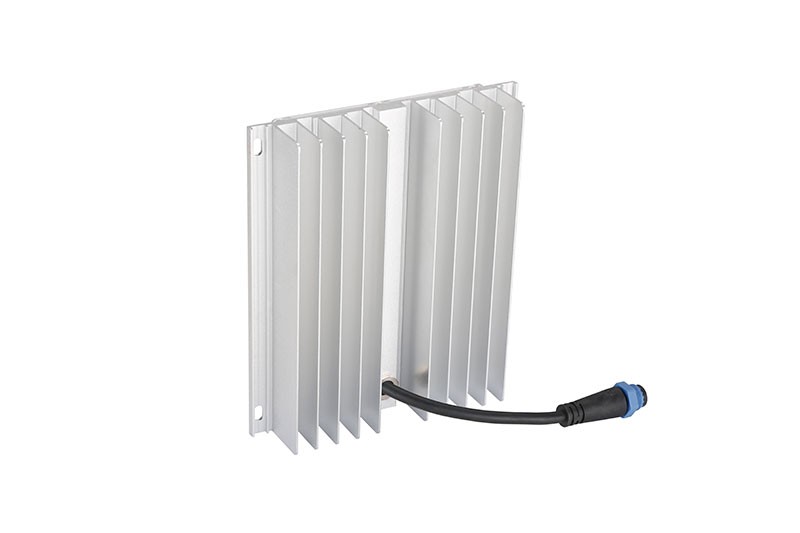

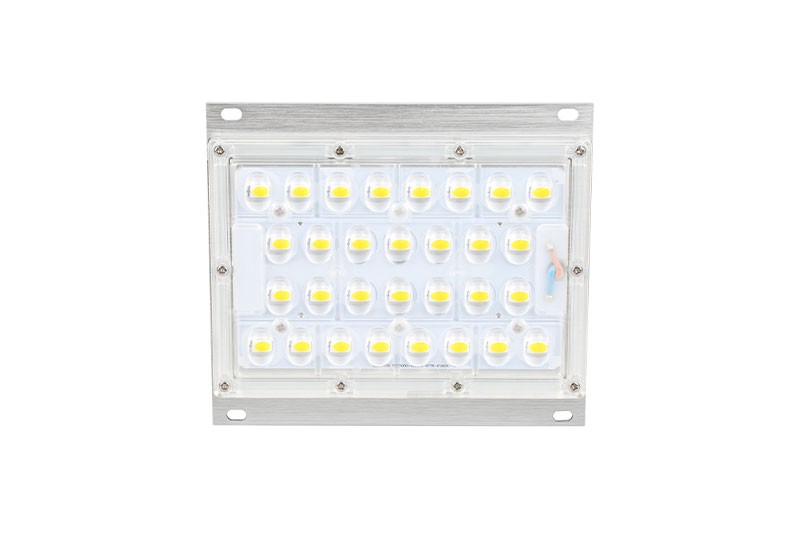

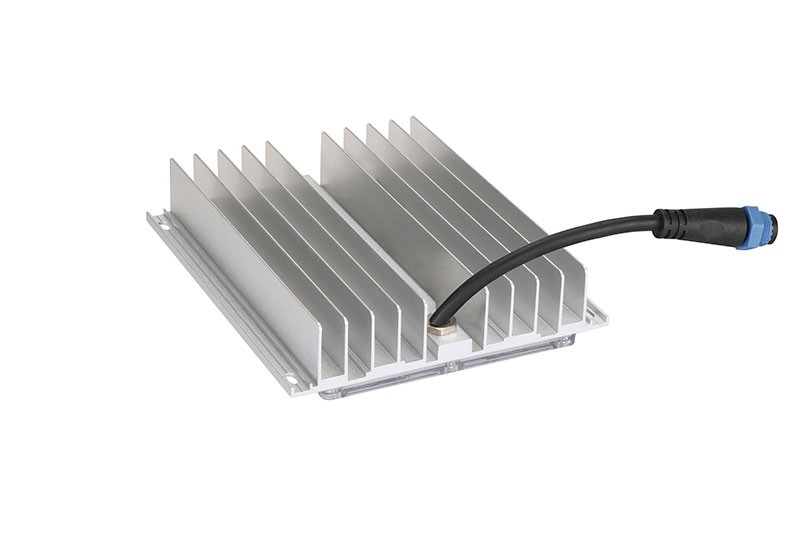

High quality aluminium heat sink with 5050 LED, Vertical lens LED Module suitable for various street light housing,especial for solar street lighting.
✔️ High efficiency 5050 LED
✔️ 150x70°
✔️ Sliver heat sink color
✔️ M15 connector
✔️ 30W-60W power range
✔️ 210lm/w max
IK10 |
IP66 |
years |
>Ra70 |
30-60W |
210lm/w |
Electrical Specifications
Nominal Wattage
30W-60W LED module solar street light
Lumen Efficiency
170-210Lm/w(+-5%)
Nominal Voltage
DC46V
Beam Angle
150x70°
LED Type
SMD 5050
CCT
3000K-6000K
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66
Lumen Maintenance
100,000 hours - L70
Heat Radiator
Aluminum alloy
Lens
PC

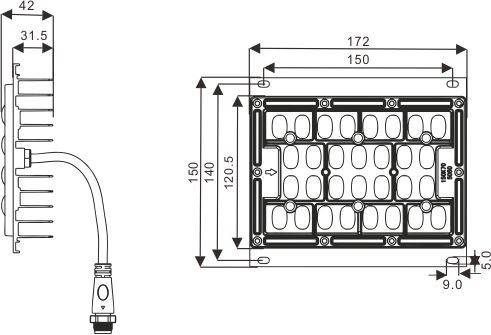

Fixture Dimension
172x150x42mm
N.W.
0.66KG
Certificates
CE,Rohs,LM-80
