L18 series 60W-350W LED modular street light has been developed to ensure maximum energy efficiency in combination with modern technologies in LED lighting innovation.
✔️Adjustable spigots

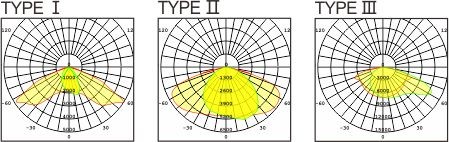

✔️150×70°,Type I, II, II-M, III, III-M, IV
✔️Buckled design housing
✔️NEMA socket available
✔️320W-350W power range
✔️5 Years Warranty
IK10 |
IP66 |
years |
>Ra70 |
350W |
175lm/w |
Electrical Specifications
Nominal Wattage
350W
Lumen Efficiency
185Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
150×70°,Type I, II, II-M, III, III-M, IV
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
100,000 hours - L70(9K)
Heat Radiator
Aluminum alloy
Lens
PC

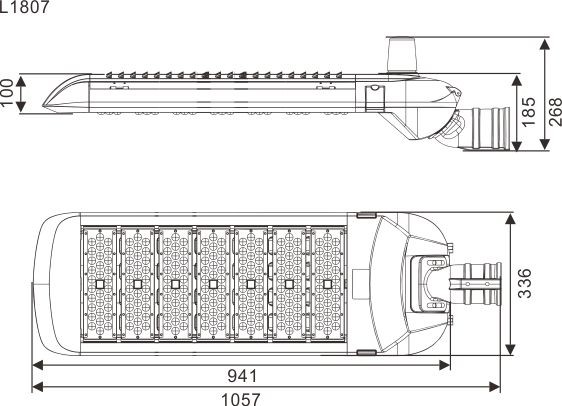

Fixture Dimension
1057x336x185mm
Fixture Weight
12.2kg
