LED Street Light

LY-L29-200

Main features:

L29 LED Street Light is a classic design in lighting market. Power ranges covered from 30W-200W. Die-cast aluminium housing design with high efficiency 5050 LEDs.


✔️ ENEC, LM79, CE, ROHS, IK08, IK10, IP66 certificate

✔️ L90B10 report 102,000hrs Lumen Maintenance

✔️ Salt spray test report 1,080 hrs

✔️ Vibration and shock test report

✔️ ZHAGA member

✔️ 150W-200W power range


     IK10

    IP66

     years

    Ra>70

    200W

    170lm/w


LED Lighting Controls

Features

Lighting up streets and roads enhance the comfort, security and overall safety of our rapidly growing urban environments. The new generation of L29 street light is the wonderful design to provide a solution to this challenge, it is the ideal solution for performing point-to-point replacement of conventional lighting. L29 street light provides your city with a flexible lighting system which can be deployed anywhere in urban spaces, highways and rural areas – our luminaires provide the optimal light for all application areas.

Moreover, the NEMA/ZHAGA socket makes it future-ready and you can pair this luminaire with lighting control and software applications such as Interact City, DALI, LORAWAN etc.

✔Economical LED alternative to conventional street lights.

✔Offers high efficiency and energy savings.

✔Made of high-quality materials for longer lifetime and minimized maintenance.

✔Good application coverage thanks to wide range of optics, tunable flux and tillable spigot.

Product parameters

Electrical Specifications

  • Nominal Wattage

    150-200W

  • Lumen Efficiency

    150-170Lm/w

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    Type I, II, II-M, III, III-S, III-M, III-L, IV-S

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    102,000 hours L90B10(6K) at 25℃

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    814x346x128mm

  • Fixture Weight

    8.9kg

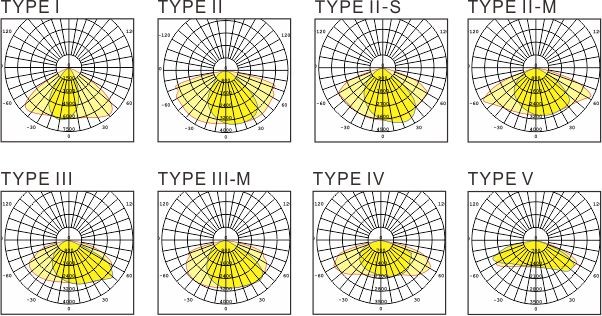

Photometric Specifications

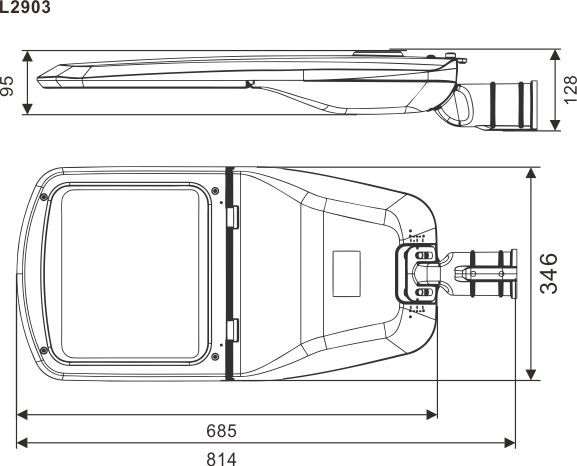

Dimension
