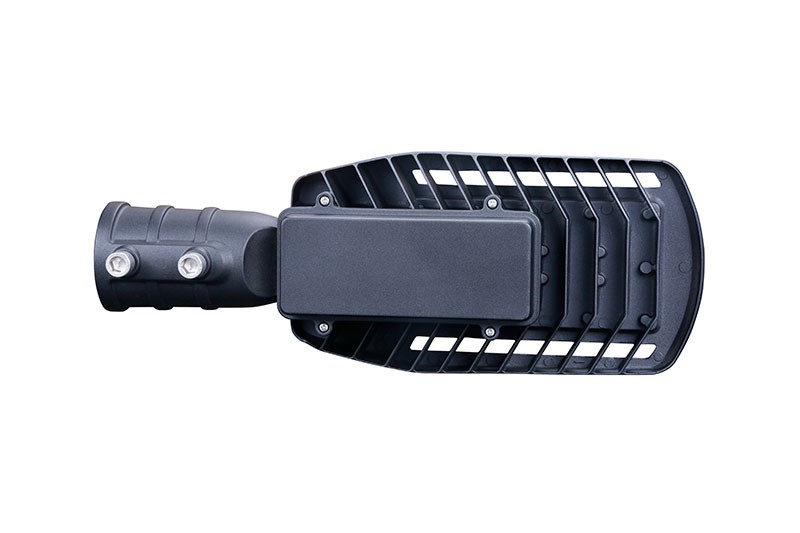

L60 ultra-thin design street lighting, is economic and cost-saving product from 30W to 180W for urban road lighting.
✔️ Fixed spigots
✔️ Type III-M
✔️ Black housing color
✔️ Die-cast aluminium housing
✔️ 30W-60W power range
✔️ 5 Years Warranty
IK10 |
IP66 |
years |
>Ra70 |
60W |
120-130lm/w |
Electrical Specifications
Nominal Wattage
30W-60W
Lumen Efficiency
140Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
Type III-M
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 88%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
50.000 hours - L70(12K)
Heat Radiator
Aluminum alloy
Lens
PC

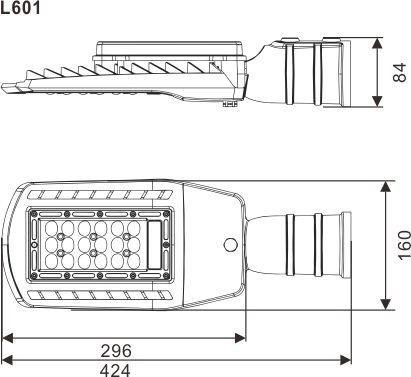

Fixture Dimension
424x160x84mm
Fixture Weight
1.7kg
