LED Street Light

L6804

Main features:

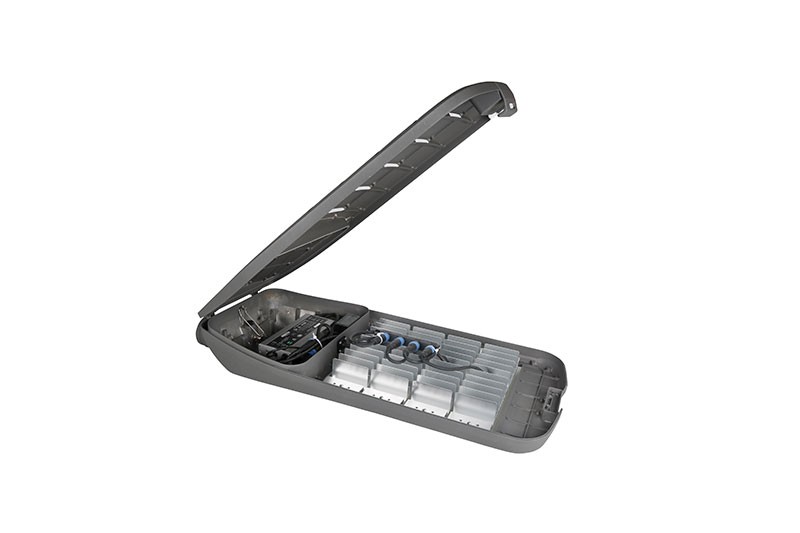

L68 LED modular street light are most updated & innovating product with easy maintenance buckled design. the louver design on fixture improves heating dissipation.


✔️Adjustable spigots

✔️Type II

✔️Die-cast aluminium housing

✔️NEMA socket available

✔️220-250W power range

✔️5 Years Warranty


     IK10

    IP66

     years

    >Ra70

    220-250W

    170lm/w


LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    220-250W

  • Lumen Efficiency

    170Lm/w(±5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    Type II

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    72,000 hours - L70(9K)

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    833x350x165mm

  • Fixture Weight

    8.0kg


Photometric Specifications

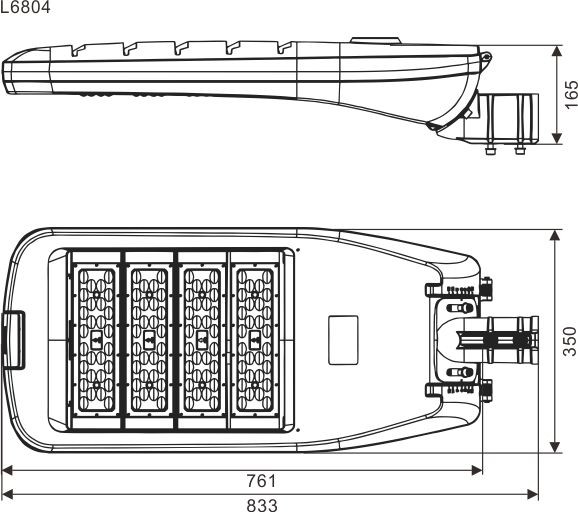

Dimension
